Hi, I'm Dave.. a humble Volvo hobbyist.  I've been playing with Volvos (mostly 240s) since 1988.  My pages here are an attempt to share my experiences with other Volvo hobbyists and to chronicle the knowledge and information I have gathered over the years so it may be passed on to others.
I've owned 10 Volvos since 1988.  So I thought I'd list some of them below....
<<< My very first 240 (my second Volvo). A
white 1983 244 DL.
I bought it in 1990.  Non-sunroof car, roll-up windows, auto trans, marginal AC, ok gas mileage.  It was exceptionally clean with only 50k miles when I found it in Huntington Beach, CA. I paid $5,000 for it.  It eventually got iPd sway bars, sport springs and Bilstein HD shocks, as well and a few other fun goodies.  I bought the back half of a 240 Turbo exhaust and installed it from the cat-back.  It originally came with 14 inch steels wheels and hubcaps.  I installed the 15 inch wheels from my '88 760.  I drove it everywhere for 6 years and put over 100,000 miles on it.  I then gave it to my daughter in 1996 when she got her drivers license.  Unfortunately it was destroyed a few months later when some nit-wit pulled out directly in front of her in a Chevy Caprice and she hit it broadside at 50 mph plus.
More HERE.

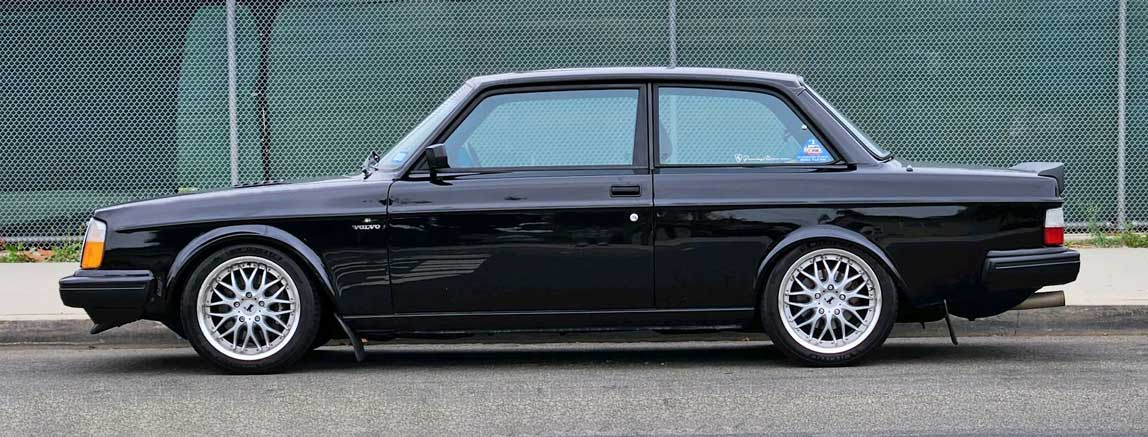

242t-110407-01low.jpg242t-110407-02low.jpg<<<  I bought this beautiful black 1984 242 Intercooled Turbo in 2003.  I'm the 4th owner and I still own it and drive it every day. The original paint and leather interior has stayed very nice because the car was always garaged and still is. This car was a rare find and it is a great car to drive and own.  It was all original and stock when I got it. I resisted the urge to modify it for a few years, but slowly that urge won. So it has also gone through a few changes, but not nearly as drastic as the '84 wagon did below.  The Eiker rims (Polaris replicas) seen at the left were imported from Finland in 2004. These Eikers are 17 x 7.5 inches and were fitted with 215/45-17 rubber.  A few years later, these wheels were available in the U.S. from iPd, however before that happened, a Finnish friend arranged for the purchase from Eiker and shipping to me.  It wasn't cheap, but I loved these wheels.  This car also has iPd TME sport springs, Bilstein HD shocks and struts, and iPd 25mm sway bars.  The engine is still the original B21FT with a few added features, such as SDS programable EFI and ignition and a Mitsubishi TD04HL 15G turbo mounted on a 90+ manifold.  After the original auto trans failed more than 100 miles from home (road-trip to the annual Davis Volvo Show), it was replaced by an M46 4-speed plus overdrive transmission and then more recently by a Ford Motorsport WC-T5Z 5-speed, which now sports a hydraulic clutch setup.  The rear spoiler is a very rare Volvo 240 accessory made by Zender in the 1980's.

<<< Here's a pic what this 242 looked like when I first bought it in 2003.
And eventually I grew tired of the traditional coffin-hood, so in 2010 the car received a flat hood and matching flat grill.

<<< And then some nice new taillights.  That kept me content for a little while....





<<<  In 2011 I decided to go old-school on the front grill just for fun.  The 7 inch round lights are Sylvania HID units with an H-1 high beam.  These are no longer available and now pretty rare.   I wanted some mega killer high-beams for long road trips, so I painstakingly enlarged the fog light buckets in a 242 GT grill and fitted a set of Dick Cepek 5 x 7 inch 100 watt off-road lamps.  They light up the night like the sun, seriously.  That's a nice bonus on  long, dark roads.

<<<  These photos were taken during a trip down the Northern California coast in 2011.  The first one was on the famous Mattole Road south of Ferndale.  The last one in Humbolt Redwoods State Park.





<<<  In 2012 I decided it was time for some new wheels.  The Eikers were on there for more than 7 years and I wanted something I wouldn't see on other 240s at every Volvo show I attended. These are 17 x 7.5 wheels. They are a BMW bolt pattern with custom billet adapters from http://www.motorsport-tech.com.  Tires are 235/40-17 Goodyear Eagle F1.

If you fit a tire this wide on the rear of a lowered 240, you will be trimming some of the inner rear fender metal to make room.  The back half arch will typically need to be trimmed by about 1/2 inch or more, depending on your ride height.



<<< Here's a recent underhood shot.
Lots going on in there, but most of it is pretty reliable and keeps my car going as a daily driver needs to.





<<< In October 2013 I packed up the Volvo and moved 1400 miles from California to North Texas.
Thule gutter mount racks are really stong.  There's close to 600 lbs on top in this photo.

<<<
The weather in Texas can sometimes be fun.
245ti-1997-002.jpgHumble 245 beginnings.....  My first 240 Turbo.  I bought this 1984 245 Turbo back in March of 1997.  I paid $3200 to who I think was the second owner in Rialto, California.  It was completely stock and original.  When I started a few little modifications, I really had no idea the direction it would eventually take.  This was my first 240 Turbo, so I found myself in a strange new world when it came to understand things like K-Jetronic fuel injection.  I had no clue what made it tick, but I was learning.
          I wanted to modify, modify modify.... It was not fast enough.  But this car was my daily driver, so as many of you know, there are limits to the kinds of mods you can do to a car that needs to get you to work in the morning.  For those of you who were into modifying Volvos in the 90’s, you'll remember there were not many sources for performance parts.  I was no stranger to hot-rodding, having previously owned a 66 Chevelle
(my first car) and then a ’67 BMW 1600ti Alpina former German Group 3 racer (see photo)... complete with box fender flares, racing suspension, roll-cage and dual Weber 45 DCOE carbs.  By 1997 I had already been a customer of iPd for a while and they were the best (often the only) source around for Volvo performance improvement parts.  So mods started getting done slowly as I could manage.


031806-002-med.jpg          A funny thing happened about the time I bought this 245....  I got the internet and soon discovered a few other Volvo people out there who also had the internet. Turbobricks was a brand new concept back then and I remember245interior9-05.jpg spending hours reading the email digests and learning new ideas.  I learned an enormous amount from others who shared their experiences.  The original Turbobricks email list is now extinct.  As great as that old list was, the latest Turbobricks forum has it beat by a long way. And I'm still learning about these cars.
          You'll notice that my 245 began to move away from the original stock 240 wagon look.  I made a few cosmetic and functional adjustments.  As it progressed, I found it important to work on the aesthetics as well as the performance.  The first major step was the elimination of the old original wagon roof rack, which was done by a body shop (all holes welded shut and the roof repainted to match).  Pretty early on I exchanged the original "coffin" hood for a flat hood and matching flat grill, both of which came from a junked ’83 242 Turbo SE “flathood” I stumbled across in a salvage yard one day.  The "SE Flathood," which was known for this flatter nose, was a special edition 242 Turbo built in 1983 for North America.  Volvo built 500 of them to satisfy the FISA requirements for factory homologation for European Touring Car Group A racing, the most notable being the European Touring Car Championship (ETCC).  More info on Volvo's Group A racing effort with the 240 Turbo can be found here at Volvo 240 Group A Racing I prefer the look of this sleeker nose over the original North American import pointed hood.  And of course, the headlights were eventually changed to the European (E-Code) lamps.  They work so much nicer than the original crap US DOT approved lights found on all USA import Volvos back then.
           In 1998 the internet supplied the connections which helped me import the Bross body kit from Sweden,
originally obtained from Hallsjo Styling of Sweden.    It's no longer available from them and it became impossible to find for a few years.  Now there is a company in Europe who currently advertises this kit and others for Volvos at http://www.stylingkompaniet.com/.  This site has an English page too, however I have been told by customers they refuse to ship outside of Sweden.
           When I bought my 245, the original tan leather seats had begun to dry up and crack like most leather Volvo interiors in sunny climates.  I replaced the interior with a custom tweed and vinyl interior that made me very happy.
underhood-083004.jpgB23FT-042101-1.jpg           By 1999 I was dissatisfied with the performance of the B21FT motor and I began gathering parts for a new 2.6 liter stroker turbo motor.  It was based on the B23FT block from the 1984 760 Turbo.  Due toSpearcoIntercooler2.jpg the expenses involved, it was nearly two years before that motor made its way into my car in the spring of 2001.  The motor was equipped with a programmable digital electronic fuel injection system from Simple Digital Systems in Calgary, MVP_Coil-Overs001.jpg Canada.  The turbo was a Garrett Super 60 from Turbonetics.  And a huge intercooler was built by Spearco to fit in the original intercooler position (more info is available in my Spec Sheet Page).
          This car was originally equipped with an automatic transmission and I considered my options for something that would hold up to more power.  I settled on a custom race-prepared Volvo AW-71 auto trans built by Art Carr Racing Transmissions in Huntington Beach, CA.  Once installed, the new drivetrain seemed to run pretty well, logging a zero to 60 time of 5.9 seconds while running about 14 psi of boost.  But from the beginning I felt the new motor was not running to its desired high-power potential.  The ignition was still stock and I remember spending a lot of time trying to get the primitive mechanical boost retard system to mesh with everything else.  It never did that very well. As is always the case with modified cars, it's never enough.  In 2003 I upgraded the SDS fuel injection to include a crank-triggered ignition system that was fully programmable.  It helped a lot.  I also installed a coil-over spring package I got from MVP (no longer available).  I was very impressed with the handling improvement.  Things were stiffened up a bit. I opted for 200 lb. front springs and 175 lb. rears, since this car was still a daily driver.  I had a chance to take the car to some VCOA track days at Thunderhill Raceway in Northern California and the coil-overs really seemed to make the handling better for the car.  There are more photos of this installation in my Spec Sheet Page.
T5-trans032704-002.jpgT5_adapter.jpg          After experiencing some problems with the suped up AW-71 transmission (it started slipping at 11,000 miles... bummer!), I decided in 2004 that I was long overdue for a manual transmission.  The Volvo M46 manual (4 speed plus OD 5th), which was normally optioned in a 240 Turbo, simply would not do.  The M46 is well known for breaking when subjected to high torque levels.  By this time I had found my stroker motor was making well over 300 lbs. of torque at the wheels.  Once again, the guys on the Turbobricks forum came though and led me to a great transmission swap based on the Ford T5 gearbox.  I chose a brand new Ford Motorsport T5-Z five-speed gearbox from Summit Racing.  This gearbox is rated at 330 lbs. of torque and typically survives behind V8 engines with much more than that, so I felt it would be sufficient.  It was mated to a modified Volvo M46 bell housing with an aluminum adapter plateDoug Kauer’s 242 Turbo (you can find it here) was the original Guinea pig for this conversion and it worked so well for him that I had to try it for myself.  Strangley I had never owned a manual transmission Volvo before this, primarily because I never found the right one when hunting for them.  I never knew what I was missing.  The increased control and fun factor was no real surprise as I had owned other manual trans cars over the years.  The jump in fuel mileage was a pleasant surprise.  I knew it would increase a little, as I was used to gas mileage figures in the 16 to 18 MPG range.  I suddenly found the car getting 26 plus MPG on the highway... exceptional considering the bigger displacement and my lead foot.  I was also surprised at how much cooler the engine ran.  The manual trans puts a LOT less demand on the motor.
R-brakes004.jpg          A car like this is NEVER done....   so to keep that concept alive, in 2004 I installed some nice big front brakes.  These were adapted from a 2004-2007 S60R.  The photo at left is the mock-up a friend (Paul Jones) and I put together using a junkyard strut assembly, before actually installing the brakes.  The aluminum adapter brackets were designed by Travis Kijowski in Maryland.  I had the pleasure of putting together the first 240 on the planet with R brakes. The installation of 13 inch front rotors and big 4-piston calipers from the ‘R’ really transformed the braking on this car.  More info and photos about how and why I did this can be found in my 240 Big Brakes Page.
While my 245 stopped being a daily grocery getter, it was still very much a road trip machine.  I made quite a few long trips to Volvo meets and shows in California and Arizona, Oregon and Washington and it never stranded me. With so many modifications, I crossed my fingers each time.  In the summer of 2003 I drove in air-conditioned comfort 1,100 miles each way to the West Coast National Volvo Owners Meet in Olympia, Washington.  The 245 won First Place and Best of Show in the modified division.
80DL-081600-002.jpg80DL-081600-001.jpg80DL-111404.jpg          I bought this blue 1980 242 DL in 2000 in non-running condition.  It was a very basic, non-sunroof car, which I actually prefer. The car had been abandoned by the previous owner outside a local repair shop because he couldn't afford the repairs.  It was eventually towed away and I found it in the tow storage and bought it for $150.  I tracked down the previous owner and gave him a little money for the original keys... which worked out quite nicely.  He told me the car had been his daughter's car and it over-heated.  I pulled the head off and found it was cracked and warped.  After installing a rebuilt head (plus a few minor things to freshen it up, like a new engine harness, vacuum hoses and such), it served as a great daily driver for several years until I bought the black 242 Turbo in 2003.   I gave the DL to my son when he turned 16.  He kept it for a while and did some mods of his own, like the 16 inch wheels.  After a few years, he bought a new car and traded it in.

The first two pics above were taken right after it was towed home and dropped in my driveway.  The next pics were more recent after applying new paint (Volvo 139 Scotia Blue), 1984 bumpers, black turbo trim on the fenders, new black trim above the bumpers and around the windows, later style headlights (Cibie hi-watt E-code), a "new" junkyard interior, a nice "new" uncracked dash, freshly powder-coated Virgos, full iPd suspension (TME sport springs, 25mm sways and Bilsteins HD's), all new suspension bushings, and lots of other goodies.
     Update (June 2013): This car has recently turned up with a new owner in Vermont who promises to take good care of it.  Gotta keep those classic 240s going.

90-740T.jpg<<< Here's a red 1990 740 Turbo I bought used in 1996 at San Diego Volvo.  It also soon became blessed with IPD sport springs, 25 mm sway bars and Bilstein HD shocks. It was a great driver and it handled beautifully.  The auto transmission failed at about 100k miles.  That was expensive.  It eventually got traded in 2002 for a brand new S40.

88-760Turbo.jpg<<< And here's a pic of my very first Volvo... a black 1988 760 Turbo.  I bought it brand new from the showroom floor of Riverside Volvo in Riverside, CA (this dealer is now gone) in March of 1988.  I later added 100 watt killer driving lamps, Fittipaldi 15 x 7 wheels (they were the hot ticket back then and the ONLY aftermarket wheel available for a Volvo at the time), iPd anti-sway bars (with the rear IRS type bar that is no longer offered), and a factory Volvo rear trunk-lid spoiler, which I got the dealer to throw in free.  It was a very nice car, but it had a few imperfections later.  It suffered badly from the well known door panel problem, where the vinyl at the top would come loose and shink/peel back.  It started happening when the car was less than a year old.  This car was sold with a 12 month bumper-to-bumper warranty and after that, the limited powertrain warranty.  I was a little late in getting the car in for its 12k mile service (13 months after purchase).  I showed them the bad door panels  and after the dealer talked with their Volvo rep, they called and said Volvo would not cover the defect.  I couldn't believe it.  The dealer generously offered to sell me new door panels for about $400 each.  I had a neighbor who worked at Orange County Volvo (next county over).  He also couldn't believe it and told me this was a very common problem with the 700 series and Volvo should have covered it.  He called me a couple days later and said their Volvo rep had authorized new door panels for the car without any fuss.  Makes me a bit suspicious of that Riverside dealer.  Anyway, I never returned to that dealer and they went out of business a few years later.

Here's the 2005 S40 T5 I bought new in the summer of 2005 after trading in the 2002 S40. This was the last new Volvo I bought.
2005_S40.jpgThis 2005 was a pretty nice car, but not nearly as trouble free as some of my other Volvos had been over the years.  It got traded just before the 4 year warranty expired after a few electrical failures (sensors, computers, etc) and motor mount failures.  One electrical failure, a month before the end of the warranty, was invoiced by the dealer to Volvo for $3500.  Not a chance I was going to keep this car past its warranty.

This car also suffered from what I believe was mis-engineered rear suspension geometery.  It allowed for too
much rear negative camber, which destroyed tires prematurely.  I discovered this in December 2007 after burning through the first two sets of tires in under 30,000 miles; first set lasted just over 15,000 miles, and I didn't really notice (this car was almost exclusively driven by my wife). I figured Volvo cheaped out on the tires.  Seen that before.  The second set lasted just over14,000 miles, and I did notice why this time.  These were very good 40,000 mile tires, so I was NOT happy about that.  When I looked closer, I discovered the extreme wear on the insides of the rear tires (see photos). The tires had been getting regular rotations by the Volvo dealer during regular check-ups (every 5000 miles), but no one at Volvo seemed to notice the inside tread area on two tires was worn slick when I had them perform a 30,000 mile service (and a tire rotation) a week before taking these photos.

<<< Here is one front and one rear tire. The middle and outside tread still had about 60-70% left, but the inside tread on the rear tires was worn slick.  After buying and installing a third set of tires, I took the car to the Volvo dealer and asked them to check the alignment. The service manager told me that the camber setting for all four tires was "within factory spec."  When I demanded to know what it was actually set at, they had to put the car up on the rack to check again.  It measured negative 2.1 degrees on both rear wheels (this is a lot of camber and it was visibly obvious when viewed from the rear).  Apparently, Volvo considers up to negative 2.5 degrees to be acceptable for this chassis and "within spec."  I certainly disagreed and so did my tires.  The rear camber on a Volvo S40 is not adjustable or correctible without changing parts.  I was pretty disappointed when they repeated that they considerd the camber to be OK and there was nothing that could be done. They checked the front camber too.  It was negative 1.0 degree, which I believe is closer to what the rear should be from the factory if it's reasonable.  Since this dealership was rotating my tires every time I brought it in, I asked the service manager if their techs should have noticed the tread on the tires was worn smooth?  He wouldn't give me an answer.

It became evident that not all Volvos with this chassis have this issue.  While at the dealer waiting between aguments, I spotted an identical 2005 S40 pulling into the service area, so I checked it out.  I got down behind the car and could see it obviously did not have as much negative camber as mine did.  The difference was clearly visible.  I could see the tires on this other S40 were nearly worn out, but they were EVENLY worn.  I then asked the owner about his car.  He told me he bought it new in 2005 (several months before I bought mine).  He had 40,000 miles on the car and those EVENLY WORN tires were his ORIGINAL TIRES.  After I brought the service manager outside and showed him, he seemed more confused than ever at the significance, so I collected my car and left.

After continuing my research, I discovered through a confidential Volvo insider (it helps to know a few insiders) that Volvo knew about this defect and there was even a Technical Service Bulletin in existence (but no recall).  The fix for this problem was a new, re-eng
ineered set of rear control arms that were available to correct this (apparently common) problem.  I again checked with the dealer and they said they knew nothing about a TSB on the issue.  After I pointed them in the right direction, they contacted Volvo Corporate and verified the existence of the bulletin and replacement control arms.  The dealer called me back and told me Volvo had agreed to replace the control arms free of charge.

While Volvo eventually owned up to this, at least for my car, I should NOT have had to fight so hard to get this defect corrected.  Volvo needs to improve vastly in this respect!  After being corrected, the rear camber was measured at a more reasonable negative 1.1 degrees.  Since the S40 shares the same platform as the C30, C70 and V50, some of them will be affected too.  I had a close look at several new C70s in the showroom that day and they ALL had way too much rear camber.

In February 2013 I received an email from a Volvo owner regarding this:  "I read of your rear alignment issues with your S40 and I had about the same experience with a 2010 V50.  I just traded that V50 for a 2011 with the T5 and it had the same problem.  The local dealer replaced the control arms under warranty.  This was also a problem on my wife's 2011 C30 and we just had the dealer replace those control arms under warranty (after buying a new set of tires at 18k miles).  Too bad Volvo did not just fix this one part early on.  I know the Mazda 3's have the same problem , too."  S. R., Nindle, VA

Reference Material:  Uneven Rear Tire Wear, Correction of Excessive Negative Camber; Retailer Technical Journal RTJ15309-2009-12-16. This RTJ calls for the replacement of the rear upper control arms with PN 31201356, which reduces the camber by ~ 0.7 deg. It is applicable to: C30 2007-2010, C70 2006-2010, S40 2004.5-2010, V50 2005-2010.  In 2012, this RTJ was updated to include the listed models through 2012.  A fellow Volvo owner sent me a copy and here it is for you to read and use if needed:  http://www.davebarton.com/pdf/RTJ15309.pdf

Volvo RTJ19674 Wheel Alignment Specifications :  http://www.davebarton.com/pdf/RTJ%2019674-2010.pdf
Volvo TSB Listings:  http://www.carproblemzoo.com/tsb/volvo/
More Volvo TSB Listings:  http://www.faqs.org/car/volvo-s40n-2005/
Copies of TSBs may be obtained here (paid subscription required):
www.eautorepair.net/app/TSBS
